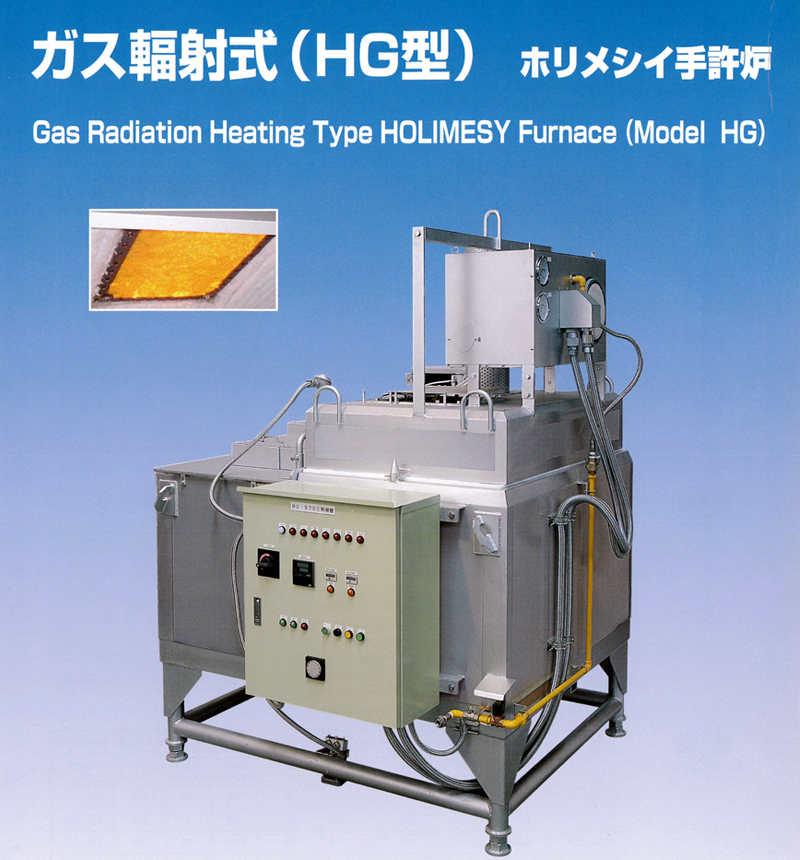

Gas-Radiation-Type HOLIMESY Aluminum Dosing Furnace (Model HG)
FEATURES
・ The quality of melt is good.
・ There are small fluctuations in temperature.
・ Loss due to oxidization is minimized.
・ Thermal efficiency is good, contributing to energy savings.
・ Immersion tubeless.
・ Requires a longer interval between maintenance requirements.
・ Allows temperature to increase rapidly.
OVERVIEW
lmmersion tubeless Gas Radiation Heating Type Holimesy Furnace in which the benefits of the conventional Electric Radiation Heating Type Holimesy Furnace have been maximized. The heating device of the conventional Electric Radiation Heating Type Holimesy Furnace was replaced with a surface gas burner， which has successfully reduced the quantity of oxides produced to approximately one-fifth of that obtained with the conventional furnace. This reduction will reduce the frequency of furnace cleaning to once monthly. Accordingly, this is a new version of Holimesy Furnace and will substantially contribute to labor saving.

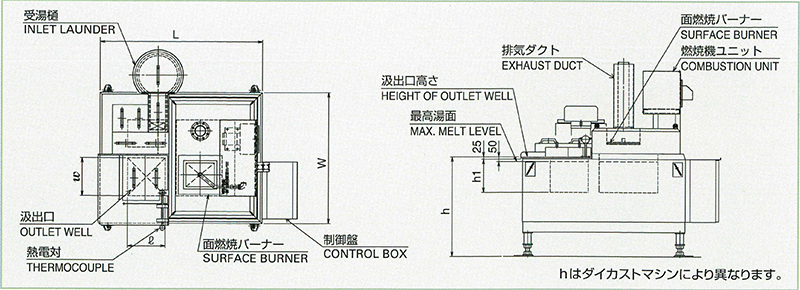

CONSTRUCTION
SPECIFICATIONS
| Model |
A Holding Capacity
kg |
Well Dimensions
m/m ×W |
Depth
m/m
h1 |
Outer Dimentions
m/m
L×W |
| HG-510 |
510 |
350×350 |
300 |
1540×1380 |
| HG-695 |
695 |
400×400 |
350 |
1710×1380 |
| HG-830 |
830 |
450×450 |
400 |
1760×1405 |
| HG-930 |
930 |
450×450 |
450 |
1760×1405 |
| HG-1150 |
1150 |
500×500 |
500 |
2040×1625 |
