HURRY MELTER
(Aluminum Alloy Quick Melting Furnace)
FEATURES
1. Energy saving
・ Utilization of exhaust heat
・ Efficient heat exchange done in the dry hearth
・ Reduced radiation heat loss by using special refractory insulation
2. Labor saving
・ Use of automated material charging and melting systems as well as automated melt supply system reduces labor.
3. Reduced metal loss
・ Use of high-velocity long-flame burners reduce metal loss caused by oxidation.
4. Compact design
・ Introduction of an automated melt supply system allows for a low-profile furnace design.
・ Design of the furnace in block units keeps the furnace size to a minimum and maximizes utilization of floor space.
5. Easy cleaning and maintenance
・ Designed for easy and quick cleaning and maintenance.
6. Improved safety
・ Equipped with a complete set of sensors for safe operation and quality melts.
OVERVIEW

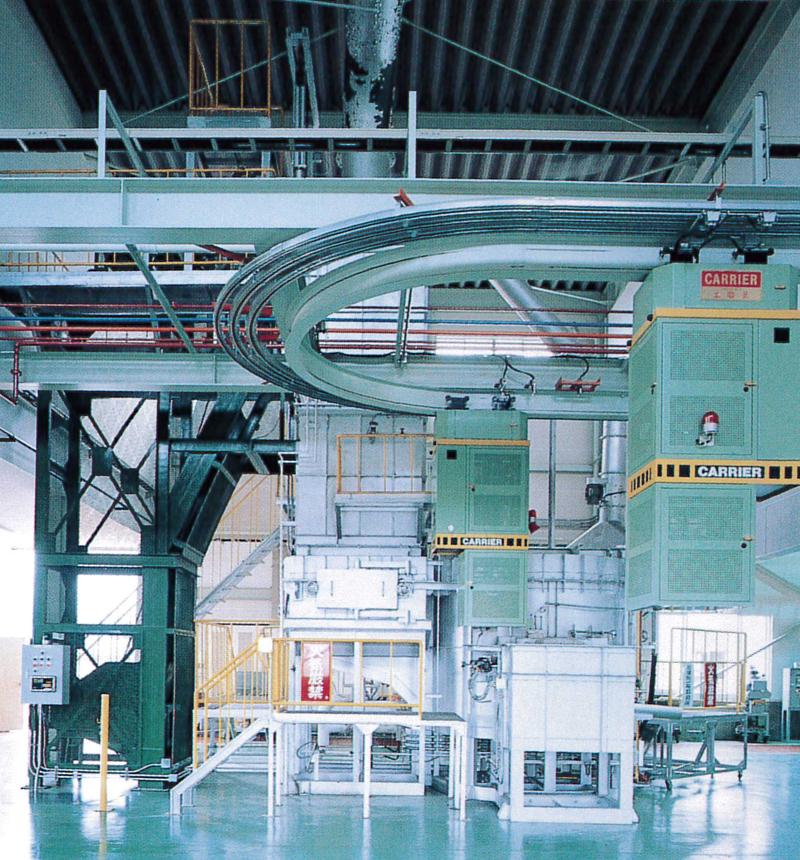

The aluminum alloy quick melting furnace HURRY MELTER Series is the latest innovation from Hirochiku's advanced technology in this field. The HURRY MELTER Series contributes substantially towards an improved working environment by eliminating the notorious three ‘D’s [Dirty, Dangerous and Difficult] usually found in conventional aluminum casting foundries. The HURRY MELTER series meets the diverse requirements of aluminum casting foundries by offering compact design for maximum utilization of floor space, easy cleaning and maintenance, lower energy consumption, decreased labor costs and reduced metal loss while still providing safe operations. If the HURRY MELTER Series is combined with our “CARRIER” and “LAUNDER” systems, a completely automated, unmanned melt supply system can be achieved which results in high quality melts and an improved working environment.

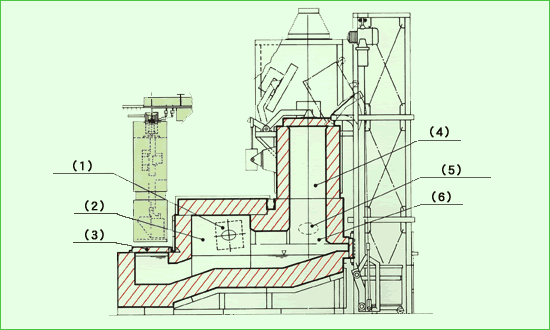

CONSTRUCTION
Construction of HOLIMESTY
Dosing Furnace
(1) Holding burner (2) Holding chamber
(3) Ladling well (4) Preheating tower
(5) Melting burner (6) Melting chamber
SPECIFICATIONS
| Model |
Melting rate |
Holding capacity |
Melting burner |
Holding burner |
| HM-150 |
150kg/H |
600kg/ch |
10×104kcal/h |
10×104kcal/h |
| HM-300 |
300kg/H |
1000kg/ch |
15×104kcal/h |
15×104kcal/h |
| HM-500 |
500kg/H |
1500kg/ch |
30×104kcal/h |
20×104kcal/h |
| HM-750 |
750kg/H |
2000kg/ch |
40×104kcal/h |
30×104kcal/h |
| HM-1000 |
1000kg/H |
2500kg/ch |
30×104kcal/h×2本 |
30×104kcal/h |
| HM-1500 |
1500kg/H |
3500kg/ch |
40×104kcal/h×2本 |
40×104kcal/h |
| HM-2000 |
2000kg/H |
4500kg/ch |
30×104kcal/h×4本 |
60×104kcal/h |
| HM-2500 |
2500kg/H |
5000kg/ch |
25×104kcal/h×6本 |
80×104kcal/h |
| HM-3000 |
3000kg/H |
6000kg/ch |
30×104kcal/h×6本 |
100×104kcal/h |

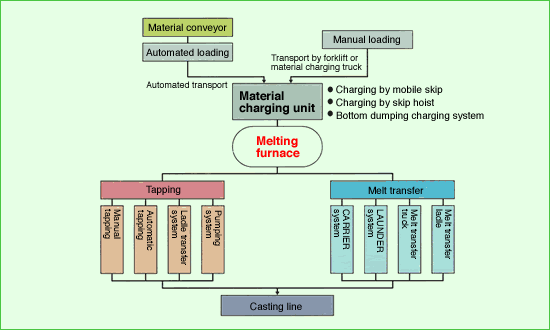

Optional specifications
