Immersion Heater HOLIMESY Dosing Furnace (Model E)　

FEATURES

The quality of the melt is good.
・ There are no fluctuations in temperature of the melt.
・ Loss due to oxidization is minimized.
・ Thermal efficiency is good, contributing to energy savings.
・ Differences between melt temperatures and ambient temperatures are small.
・ There is no need to worry about melt leakage, a problem peculiar to the types with immersion heaters located at the bottom.
・ The heater features a long life.

CONSTRUCTION

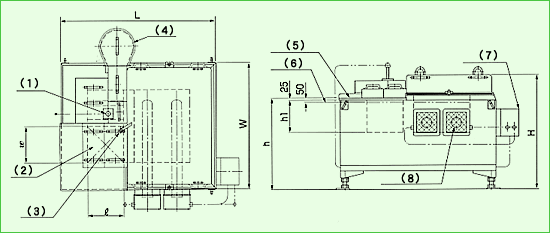

Construction of HOLIMESTY Dosing Furnace
(1) Thermocouple (2) Tapping outlet
(3) Float (4) Inlet launder
(5) Height of tapping outlet
(6) Maximum upper limit of melt
(7) Connecting BOX (8) Immersion heater

SPECIFICATION

Model	Aluminum holding capacity kg	Tapping outlet dimensions m/m h1	Furnace depth m/m h1	Furnace outer dimensions m/m L×W
Model	Aluminum holding capacity kg	Tapping outlet dimensions m/m h1	Furnace depth m/m h1	Furnace outer dimensions m/m L×W
E-850	850	400×300	400	1685×1500
E-900	900	400×400	400	1685×1500
E-950	950	450×400	400	1735×1500
E-1100	1100	450×450	450	1735×1525
E-1200	1200	500×450	500	1785×1525
E-1300	1300	500×500	500	1785×1575
E-1350	1350	550×500	500	1835×1575
E-1400	1400	550×550	550	1835×1575

Model	Power requirements kw	Power consumption kw/h		Max. ladling weight kg	Range of melt level change m/m
Model	Power requirements kw	Operations	Shutdown	Max. ladling weight kg	Range of melt level change m/m
E-850	10 (5+5)	5.4	3.2	425	375～200
E-900	10 (5+5)	6.3	3.2	450	375～200
E-950	15 (7.5+7.5)	7	3.3	475	375～200
E-1100	15 (7.5+7.5)	8	3.8	560	425～220
E-1200	20 (10+10)	9.3	4.6	670	475～220
E-1300	20 (10+10)	10	4.6	730	475～220
E-1350	30 (10+10+10)	10.6	4.9	750	475～220
E-1400	30 (10+10+10)	11.4	5.3	780	525～220
